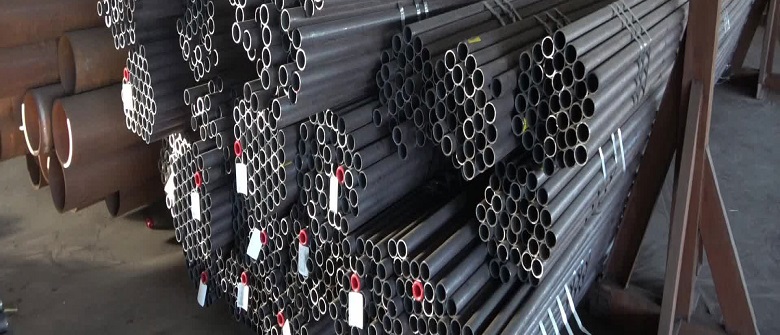

ASTM A335 P22 Seamless Pipe

Buy ASTM A335 Gr P22 Pipe, ASME SA335 Gr P22 Seamless SCH 40 Pipe at Affordable price

Bhawal Steel Agency is a steel producing and supplying company that specialises in ASTM P22 seamless pipe, among other products. We're trying to develop a solid range of steel items that are both cost-effective and long-lasting. We offer products at competitive prices for grade P22, which are generally used across boiler tubes and many other applications.

ASTM P22 is ferric alloy steel made for high-temperature environments and provides good corrosion resistance in favourable environments. Grade P22 has various forms that are successfully produced and supplied to our customers, and those are round pipes, tubes, square pipes, coiled tubes, hydraulic tubes, etc. Grade P22 is a chromium-molybdenum alloy with good corrosion resistance against acidic conditions and also has a high tensile strength at elevated temperature conditions. Generally, alloy pipes have higher proportions than any other standard carbon steel with alloying elements most often as molybdenum, chromium and nickel, etc. ASTM exhibits low-alloy steel. However, the addition of a higher proportion of alloying elements (nickel and chromium) recovers the steels into higher alloy steel, same as other higher-grade steel such as Hastelloy, monel, and Inconel. The chemical composition in P22 seamless pipes are carbon 0.05-0.15%, manganese from 0.30-0.60%, silicon up to 1%, chromium up to 2.6%, and molybdenum and silicon like other small elements for the chemical balance. 'The addition of molybdenum increases the strength and flexibility, and also enhances the steel resistance against wear and improves its properties. We manufacture seamless steel pipes and tubes from high-quality raw materials, and all of our goods are adequately tested before being shipped. To ensure that our clients are satisfied, we execute stage-by-stage inspections on the alloy seamless pipes and tubes.

SA335 P22 Material Dimensions Standard And Specification

Material	Size (in mm)	Sch. & Swg.	Specification
ASTM A335 P22 Seamless Pipes	15 NB to 300 NB	Sch. 40s To Sch. XXs (heavier on request)	ASTM A 335, ASME SA 335 Seamless



Specialized in	Large Diameter Pipes Size
Standard	SA335 P22 / ASTM A335 P22
OD	19.05milimeter – 114.3milimeter
Schedule	Schedule 40, 80, 160, XS, XXS
WT	2.0milimeter – 14 milimeter
Length	maximum 16000 milimmeter
Tolerance	Cold drawn pipes: +/-0.1mm Cold rolled pipe: +/-0.05mm
Form	Round, Square, Rectangular, Hydraulic Etc.
Craft	Cold drawn and Cold rolled
Size	1/2” NB upto 36” NB
Length	Double Random, Single Random, & Cut Length.
Type	Welded / ERW / Seamless / Fabricated
Specialized in	SA335 P22
End	Beveled End, Plain End, Treaded
Additional Testing	NACE TM0177, NACE MR 0175, IBR, NACE TM0284, SSC TEST, HIC TEST, H2 SERVICE, etc.

ASTM A335 P22 Pipe Outside Diameter & Tolerance

ASTM A450	Hot rolled	Outside Diameter, mm	Tolerance, mm
		OD≤101.6	+0.4/-0.8
		101.6＜OD≤190.5	+0.4/-1.2
		190.5＜OD≤228.6	+0.4/-1.6
	Cold Drawn	Outside Diameter, mm	Tolerance, mm
		OD＜25.4	±0.10
		25.4≤OD≤38.1	±0.15
		38.1＜OD＜50.8	±0.20
		50.8≤OD＜63.5	±0.25
		63.5≤OD＜76.2	±0.30
		76.2≤OD≤101.6	±0.38
		101.6＜OD≤190.5	+0.38/-0.64
		190.5＜OD≤228.6	+0.38/-1.14
ASTM A530 & ASTM A335	NPS	Outside Diameter, inch	Tolerance, mm
		1/8≤OD≤1-1/2	±0.40
		1-1/2＜OD≤4	±0.79
		4＜OD≤8	+1.59/-0.79
		8＜OD≤12	+2.38/-0.79
		OD>12	±1%

ASME SA335 P22 Steel Pipe Heat Treatment Requirements

P5, P9, P11, and P22 Grade	Heat Treatment Type	Normalizing Temperature Range F [C]	Subcritical Annealing or Tempering  Temperature Range F [C]
P5 (b,c)	Full or Isothermal Anneal
	Normalize and Temper	*****	1250 [675]
	Subcritical Anneal (P5c only)	*****	1325 – 1375 [715 – 745]
P9	Full or Isothermal Anneal
	Normalize and Temper	*****	1250 [675]
P11	Full or Isothermal Anneal
	Normalize and Temper	*****	1200 [650]
P22	Full or Isothermal Anneal
	Normalize and Temper	*****	1250 [675]
P91	Normalize and Temper	1900-1975 [1040 – 1080]	1350-1470 [730 – 800]
	Quench and Temper	1900-1975 [1040 – 1080]	1350-1470 [730 – 800]

ASME SA335 Grade P22 Pipe Tensile Requirements

		Seamless
		P-5	P-9	P-11	P-22	P-91
Tensile Strength, min., psi
	ksi	60	60	60	60	85
	MPa	415	415	415	415	585
Yield Strength, min., psi
	ksi	30	30	30	30	60
	MPa	205	205	205	205	415

Alloy Steel P22 Pipe Weight Per Meter

Size NPS	Pipe O.D.	Wall Thickness	Pipe I.D.	Weight per Foot	Standard to XXHY	Schedule Pipe #	Section Modulus	Gallon Capacity Per Linear Foot
1/2	0.84	0.109	0.622	0.85	STD	40	.0407	.0158
		0.147	0.546	1.09	XHY	80	.0478	.0122
		0.188	0.464	1.31		160	.0528	.0088
		0.294	0.252	1.72	XXHY		.0577	.0026
3/4	1.05	0.113	0.824	1.13	STD	40	.0705	.0277
		0.154	0.742	1.48	XHY	80	.0853	.0225
		0.219	0.612	1.95		160	.1006	.0153
		0.308	0.434	2.44	XXHY		.1103	.0077
1	1.315	0.133	1.049	1.68	STD	40	.1328	.0449
		0.179	0.957	2.17	XHY	80	.1606	.0374
		0.250	0.815	2.85		160	.1904	.0271
		0.358	0.599	3.66	XXHY		.2136	.0146
1 1/4	1.66	0.140	1.380	2.27	STD	40	.2346	.0777
		0.191	1.278	3.00	XHY	80	.2913	.0666
		0.250	1.160	3.77		160	.3421	.0549
		0.382	0.896	5.22			.4110	.0328
1 1/2	1.90	0.145	1.610	2.72	STD	40	.3262	.1058
		0.200	1.500	3.63	XHY	80	.4118	.0918
		0.281	1.338	4.86		160	.5079	.0730
		0.400	1.100	6.41			.5977	.0494
2	2.375	0.109	2.157	2.64		10	.4205	.1898
		0.154	2.067	3.66	STD	40	.5606	.1743
		0.218	1.939	5.03	XHY	80	.7309	.1534
		0.250	1.875	5.68			.8045	.1434
		0.281	1.813	6.29			.8666	.1344
		0.344	1.687	7.47		160	.9806	.1161
		0.436	1.503	9.04	XXHY		1.1043	.0922
2 1/2	2.875	0.120	2.635	3.53		10	.6870	.2833
		0.203	2.469	5.80	STD.	40	1.0640	.2487
		0.216	2.443	6.14			1.1169	.2435
		0.250	2.375	7.02			1.2468	.2301
		0.276	2.323	7.67	XHY	80	1.3386	.2202
		0.375	2.125	10.02		160	1.6371	.1842
		0.552	1.771	13.71	XXXHY		1.9971	.1280
3	3.50	0.120	3.260	4.34			1.0411	.4336
		0.156	3.188	5.58			1.3122	.4147
		0.172	3.156	6.12			1.4265	.4064
		0.188	3.124	6.66			1.5342	.3984
		0.216	3.068	7.58	STD.	40	1.7241	.3840
		0.250	3.000	8.69			1.9372	.3672
		0.281	2.938	9.67			2.1207	.3521
		0.300	2.900	10.26	XHY	80	2.2253	.3431
		0.438	2.624	14.34		160	2.8774	.2811
		0.600	2.300	18.6	XXHY		3.4243	.2158
3 1/2	4.0	0.120	3.760	4.98		10	1.3776	.5768
		0.226	3.548	9.12	STD.	140	2.3939	.5136
		0.250	3.500	10.02			2.6001	.4998
		0.281	3.438	11.17			2.8562	.4821
		0.318	3.364	12.52	XHY	80	3.1400	.4617
		0.636	2..728	22.87	XXHY		4.8795	.3085
4	4.5	0.120	4.260	5.62		10	1.7612	.7404
		0.156	4.188	7.24			2.2354	.7156
		0.188	4.124	8.67			2.6296	.6942
		0.203	4.094	9.32			2.8173	.6838
		0.219	4.062	10.02			3.0184	.6725
		0.237	4.026	10.80	STD.	40	3.2145	.6613
		0.250	4.000	11.36			3.3611	.6528
		0.281	3.938	12.67		60	3.7021	.6326
		0.312	3.876	13.97			4.0273	.6126
		0.337	3.826	15.00	XHY	80	4.2713	.5972
		0.438	3.624	19.02		120	5.1790	.5361
		0.531	3.438	22.53		160	5.8997	.4822
		0.674	3.152	27.57	XXHY		6.7927	.4054
5	5.563	0.188	5.187	10.80			4.1161	1.0979
		0.219	5.125	12.51			4.7279	1.0716
		0.258	5.047	14.63	STD.	40	5.4500	1.0391
		0.281	5.001	15.87			5.8644	1.0204
		0.312	4.939	17.51			6.4074	.99647
		0.344	4.875	19.19			6.9358	.9696
		0.375	4.813	20.80	XHY	80	7.4300	.9449
		0.500	4.563	27.06		120	9.2534	.8495
		0.625	4.313	32.99		160	10.7976	.7590
		0.750	4.063	38.59	XXHY		12.0954	.6734
6	6.625	0.109	6.407	7.59		5	3.5769	1.6748
		0.134	6.357	9.30		10	4.3475	1.6488
		0.156	6.313	10.79			5.0107	1.6260
		0.188	6.249	12.94			5.9351	1.5937
		0.203	6.219	13.94			6.3804	1.5780
		0.219	6.187	15.00			6.8261	1.5620
		0.250	6.125	17.04			7.6905	1.5306
		0.280	6.065	18.99	STD.	40	8.4958	1.5008
		0.312	6.001	21.06			9.3416	1.4688
		0.344	5.937	23.10			10.111	1.4391
		0.375	5.875	25.05			10.893	1.4082
		0.432	5.761	28.60	XHY	80	12.224	1.3541
		0.500	5.625	32.74			13.711	1.2909
		0.562	5.501	36.43		120	14.9806	1.2346
		0.625	5.375	40.09			16.1821	1.1787
		0.719	5.187	45.39		160	17.8243	1.0977
		0.864	4.897	53.21	XXHY		20.025	.9784
		1.000	4.625	60.13			21.7719	.8727
		1.125	4.375	66.14			23.1237	.7809

Equivalent Grades Of ASTM A335 P22 Alloy Steel Pipe

Equivalent material	UNS	BS	ISO	ASTM	ASME	JIS G 3458	DIN	NK	ABS	LRS
T22, 10CrMo910, 10CrMo9-10, 1.7380, 11CrMo9-10, 1.7383	K21590	3604 P1 622	2604 II TS34	A335 P22	SA335 P22	STPA 24	17175 10CrMo910	KSTPA 24	ABS 13	Sec 2 2-1/4Cr1Mo410

A335 P22 Welded Pipe Chemical And Physical Properties

P, %	S, %	Cr, %	C, %	Si, %	Mn, %	Mo, %
0.025 max	0.025 max	1.90-2.60	0.015 max	0.50 max	0.30-0.61	0.87-1.13

Mechanical Properties of ASTM A335 Gr P22 Pipes

Yield Strength, MPa	Tensile Strength, MPa	Elongation, %
205 min	415 min	30 min

ASTM A335 Gr P22 Pipe chemical comparison

Grade	UNS	C≤	Mn	P≤	S≤	Si≤	Cr	Mo
P1	K11522	0.10~0.20	0.30~0.80	0.025	0.025	0.10~0.50	–	0.44~0.65
P2	K11547	0.10~0.20	0.30~0.61	0.025	0.025	0.10~0.30	0.50~0.81	0.44~0.65
P5	K41545	0.15	0.30~0.60	0.025	0.025	0.50	4.00~6.00	0.44~0.65
P5b	K51545	0.15	0.30~0.60	0.025	0.025	1.00~2.00	4.00~6.00	0.44~0.65
P5c	K41245	0.12	0.30~0.60	0.025	0.025	0.50	4.00~6.00	0.44~0.65
P9	S50400	0.15	0.30~0.60	0.025	0.025	0.50~1.00	8.00~10.00	0.44~0.65
P11	K11597	0.05~0.15	0.30~0.61	0.025	0.025	0.50~1.00	1.00~1.50	0.44~0.65
P12	K11562	0.05~0.15	0.30~0.60	0.025	0.025	0.50	0.80~1.25	0.44~0.65
P15	K11578	0.05~0.15	0.30~0.60	0.025	0.025	1.15~1.65	–	0.44~0.65
P21	K31545	0.05~0.15	0.30~0.60	0.025	0.025	0.50	2.65~3.35	0.80~1.60
P22	K21590	0.05~0.15	0.30~0.60	0.025	0.025	0.50	1.90~2.60	0.87~1.13
P91	K91560	0.08~0.12	0.30~0.60	0.020	0.010	0.20~0.50	8.00~9.50	0.85~1.05
P92	K92460	0.07~0.13	0.30~0.60	0.020	0.010	0.50	8.50~9.50	0.30~0.60

ASTM	ASME	JIS G 3458	UNS	BS	DIN	ISO	ABS	NK	LRS
A335 P9	SA335 P9	STPA 26	S50400	3604 P1 629-470		2604 II TS38
